Charging Module / Unidirectional AC/DC Charging Module

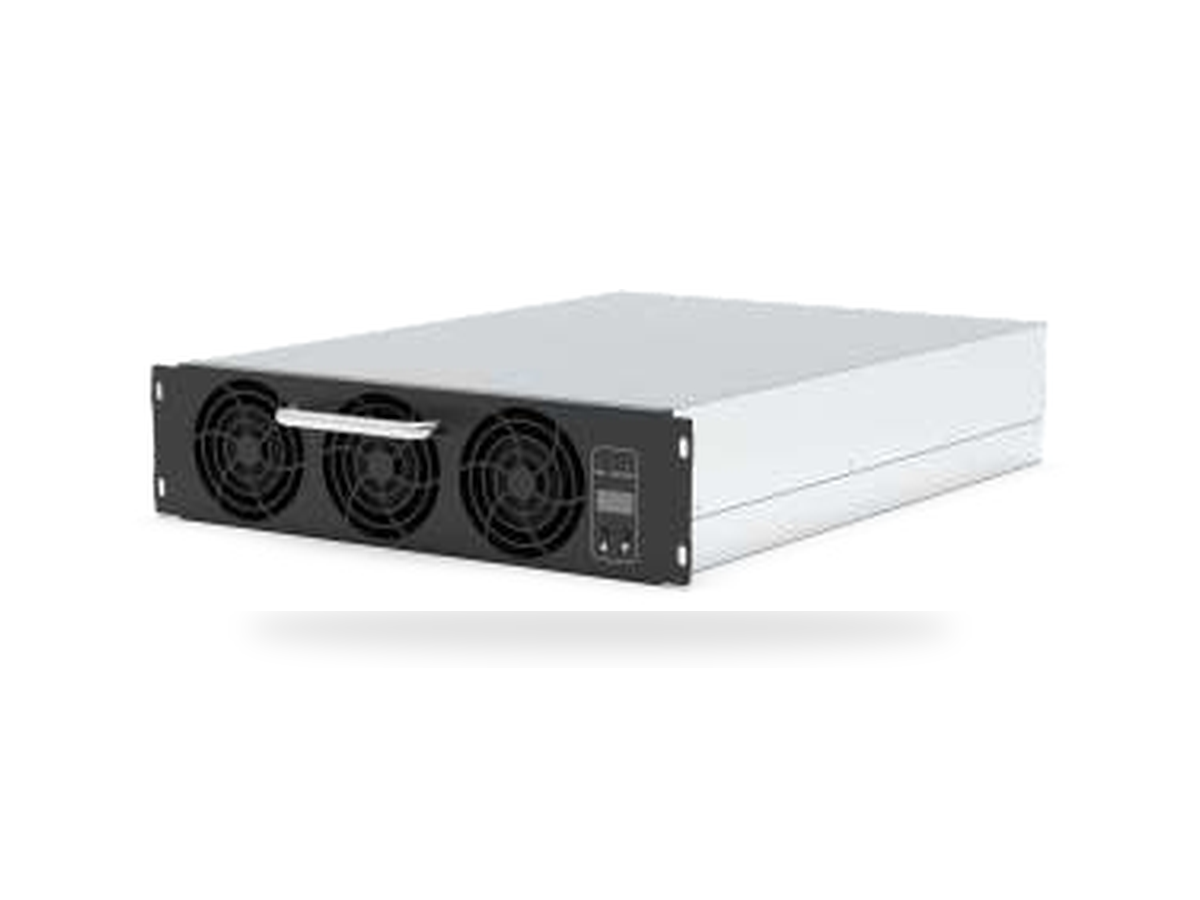

UXR100040G 40kW/1000V Class B High-Protection Charging Module
European and American standard high-protection charging module with high conversion efficiency, high power density, wide voltage range, and reliable thermal design.
Class BHigh protection
Commercial routing
| SKU | UXR100040G |
|---|---|
| Price | $1,280 / module |
| Audience | B2SmallB, B2B, Distributor |
| Lead time | 2-5 weeks after confirmation |
| Channel | Direct checkout / Amazon |
| URL | https://winlineglobal.com/en/products/uxr100040g-class-b-charging-module |
Specifications
| Rated power | 40kW |
|---|---|
| Output | 50-1000Vdc |
| Dimensions (W x D x H) | 85 x 360 x 459mm |
| Weight | ≤20kg |
| Efficiency | ≥96.3% |
| Input | 260-530Vac / 3P+PE / 45-65Hz |
| Current | 0-133.3A |
| Communication | CAN bus / ≤60 modules |
| Operating environment | -40°C ~ +75°C / 40kW @ ≤55°C |
Amazon
| US | B0UXR100040G | https://www.amazon.com/s?k=winline+40kw+charging+module |
|---|---|---|
| DE | B0UXR100040GDE | https://www.amazon.de/s?k=winline+40kw+charging+module |
