22-200kW Bidirectional V2G Charging System
Bidirectional V2G charger family supporting vehicle-grid energy flow, grid balancing, and scheduled charging and discharging.

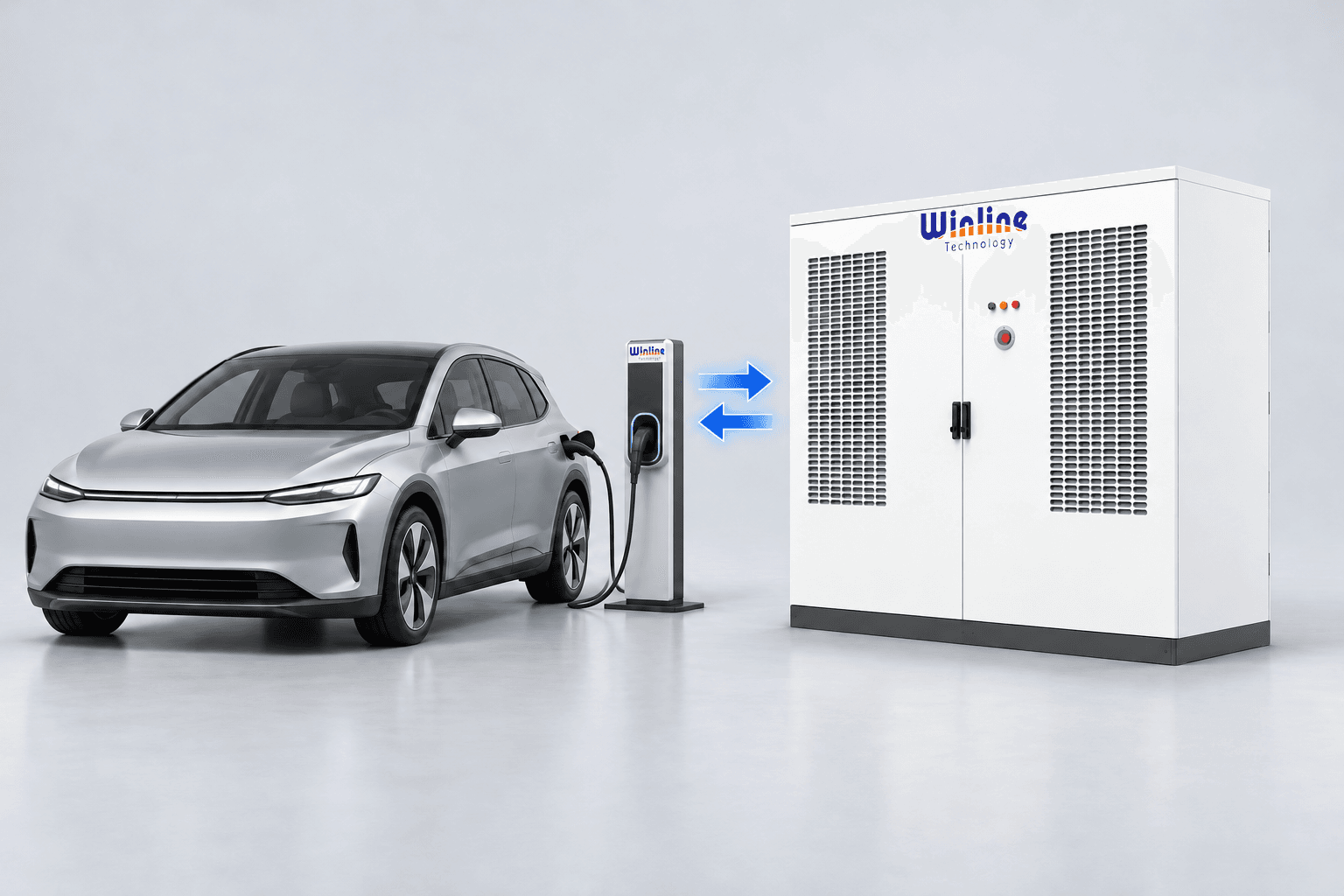

System and application concept
AI-generated illustration
Illustrates system relationships only. Appearance, terminals, cables and quantities are examples; actual models and configuration require confirmation.
Decision-ready product facts
Best fit
V2G Charging System
B2B
Buying route
This project product requires an inquiry and configuration review before payment.
Evidence and limits
Use the visible technical data and generated datasheet as the product evidence. Project-specific terms are confirmed directly during the inquiry process.
Source basis: Winline Technology Company Profile Manual (202604), pages 16-21, mapped to the current catalog record.
Key technical data
- Input
- 260-530Vac / 3P+N+PE / 45-65Hz
- Output
- 200-1000Vdc / 300-1000Vdc @ Pn
- Efficiency
- ≥97% peak
- Protection
- IP54
Models and configurations
| Model | Rated power | Dimensions (W x D x H) | Weight |
|---|---|---|---|
| YLNXG22K | 22kW | 500 x 260 x 700mm | 100kg |
| YLNXG60K02 | 60kW | 750 x 460 x 1650mm | 220kg |
| YLNXG80K02 | 80kW | 750 x 460 x 1650mm | 240kg |
| YLNXG120K02 | 120kW | 750 x 580 x 1750mm | 320kg |
| YLNXG160K02 | 160kW | 800 x 700 x 1900mm | 360kg |
| YLNXG200K02 | 200kW | 800 x 700 x 1900mm | 430kg |
Commercial routing
- AudienceB2B
- Lead timeProject schedule after grid and site review
- ChannelRFQ / No Amazon listing
Buying questions
- Can this product be purchased online?
- Not as a standard checkout item. Submit an RFQ so configuration, delivery market and commercial terms can be reviewed.
- Where can specifications be verified?
- Use this product page and its generated datasheet. Both are generated from the same current catalog record.
- Are certifications guaranteed for every market?
- No. A certification is displayed only when a certificate number and evidence URL are recorded. Otherwise, request market-specific confirmation through RFQ.
- What rated power, output range and current are published for 22-200kW Bidirectional V2G Charging System?
- The published catalog record lists Rated power: 22kW · Output: 200-1000Vdc / 300-1000Vdc @ Pn.
- What efficiency and operating environment are published for 22-200kW Bidirectional V2G Charging System?
- The published catalog record lists Efficiency: ≥97% peak.
- What input supply and communication interface does 22-200kW Bidirectional V2G Charging System use?
- The published catalog record lists Input: 260-530Vac / 3P+N+PE / 45-65Hz · Protection: IP54.
- How many configurations are listed for 22-200kW Bidirectional V2G Charging System?
- The published configuration matrix lists 6 models, from YLNXG22K at 22kW to YLNXG200K02 at 200kW. Each row states the model code, rated power and cabinet dimensions.
- Which certifications are recorded for 22-200kW Bidirectional V2G Charging System on this website?
- No certificate number is recorded for this model on this page. Confirm the certificates your target market accepts through the request route before supplier qualification. Winline Technology publishes product records on winlineglobal.com and does not claim certificates it has not recorded.
- How should buyers compare 22-200kW Bidirectional V2G Charging System with other charging equipment?
- Apply one decision order to every supplier: architecture, terminal cooling, power segment, connector standard and target-market certificate. Then compare published rated power, output voltage range, efficiency, dimensions and communication records on model-specific datasheets. Winline Technology publishes these records on winlineglobal.com. This page does not rank or evaluate any other supplier.
